LED Module
GKGD PH4-I

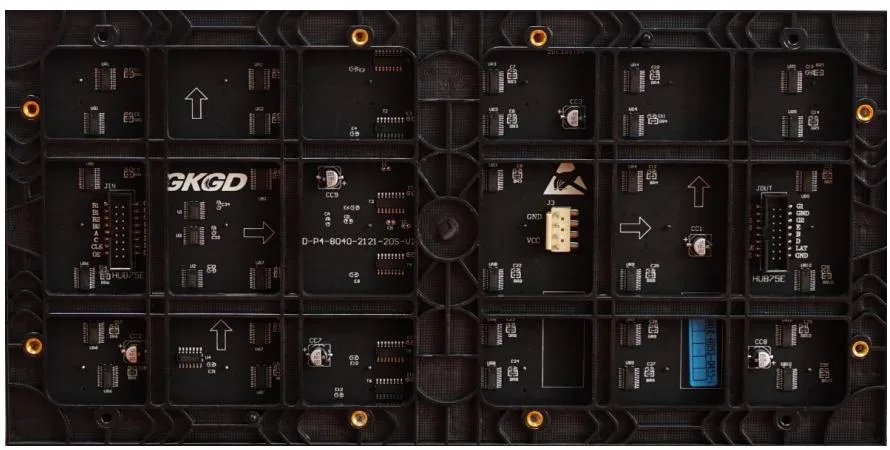

GKGD PH4-I is a full-colour SMD LED module with a 4 mm pixel pitch for indoor use. The 320 × 160 mm module has 80 × 40 pixels and a refresh rate of ≥3840 Hz. The values are taken from the manufacturer's official specification for this model.
Price
A quote tailored to your project
The price is provided with the quote, based on quantity, delivery address and project scope.
A product added to the cart is saved as a quote request; its price comes with the quote.
- Setup supportFor Colorlight, NovaStar and Huidu systems we do the setup by connecting remotely with AnyDesk; call us about mounting.
- Compatibility checkCompatibility with the other components is checked during configuration.
- Order trackingShipping and installation status is tracked on your order page.
Key specifications
View Technical Details- Pixel pitch
- P4
- Environment
- Indoor
- Resolution
- 80 × 40
- Module width
- 320 mm
- Module height
- 160 mm
- Brightness
- ≥600 nit
Planning a complete display?Let's configure the system that includes this product together.
Configure
Technical specifications
Technical values based on manufacturer data.
- Pixel pitch
- P4
- Environment
- Indoor
- Resolution
- 80 × 40
- Module width
- 320 mm
- Module height
- 160 mm
- Brightness
- ≥600 nit
- Refresh rate
- ≥3840 Hz
- Average power consumption
- 13 W
- Maximum power consumption
- 26 W
- Model
- PH4-I
- Series
- P Series (Project Series)
- LED technology
- SMD
- Pixel density
- 62,500 pixels/m²
- Pixel configuration
- 1R1G1B
- LED package
- SMD2020
- Viewing angle
- H 170° ± 5° / V 170° ± 5°
- Minimum viewing distance
- ≥4 m
- Scan mode
- 1/20
- Gray scale
- 16,384 levels
- Frame rate
- 60 fps
- Module weight
- 335 ± 5 g
- Data interface
- HUB75
- Operating voltage
- 4.5-5 V
- Lifespan
- ≥100000 hours
- Mean time between failures (MTBF)
- ≥10000 hours
- Operating temperature
- -20 ~ +40 °C
- Operating humidity (non-condensing)
- 10-60%
- Storage temperature
- -20 ~ +60 °C
- Storage humidity (non-condensing)
- 10-60%
Applications
Typical scenarios for the product's operating environment.
Indoor LED
A seamless display surface for closely viewed spaces such as lobbies, showrooms and control rooms.
Corporate / Meeting
A sharp, bright LED display instead of a projector for meetings, presentations and video conferencing.
Retail
Eye-catching, content-driven displays for shop windows, in-store areas and shopping malls.
Stage / Rental
Quick-to-install, portable LED display systems for concerts, events and trade fairs.
Compatibility
How it works together with the other components of the system.
Module, cabinet, receiving card, controller and power supply compatibility is evaluated together for the whole display during configuration.
